Product Summary

The A8290SETTR-T low noise block converter regulator (LNBR) is a monolithic linear and switching voltage regulator, specifically designed to provide the power and the interface signals to an LNB down converter via coaxial cable. The A8290 requires few external components, with the boost switch and compensation circuitry integrated inside of the device.

Parametrics

A8290SETTR-T absolute maximum ratings: (1)Load Supply Voltage, VIN pin: 30 V; (2)Output Voltage, LNB, BFI, BFO pins: –1 to 33 V; (3)Logic Input Voltage, other pins : –0.3 to 7 V ; (4)Logic Output Voltage: –0.3 to 7 V; (5)Operating Ambient Temperature: –20 to 85°C ; (6)Junction Temperature: 150°C; (7)Storage Temperature : –55 to 150°C.

Features

A8290SETTR-T features: (1)LNB voltages (16 programmable levels) compatible with all common standards; (2)Tracking switch-mode power converter for lowest dissipation; (3)Integrated converter switches and current sensing; (4)Adjustable rise/fall time via external timing capacitor; (5)Auxiliary modulation input; (6)LNB overcurrent with timer; (7)Cable disconnect diagnostic.

Diagrams

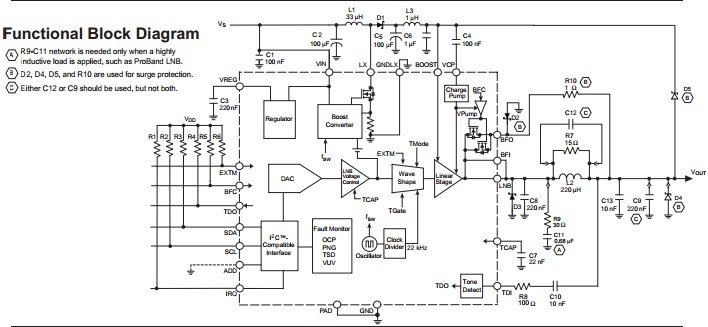

A8290SETTR-T functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

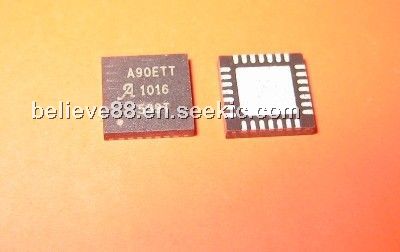

A8290SETTR-T
A8290SETTR-T

IC VOLTAGE REG SGL LNB 28-QFN
Data Sheet
0-9000: $0.78
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A8290SETTR-T
A8290SETTR-T

IC VOLTAGE REG SGL LNB 28-QFN
Data Sheet
0-9000: $0.78
A8291SETTR-T
A8291SETTR-T

IC VOLTAGE REG SGL LNB 28-QFN
Data Sheet
0-9000: $0.78
A8292SETTR-T
A8292SETTR-T

IC REG LNB SUPPLY/CONTROL 28-MLP
Data Sheet
0-1: $2.42
1-10: $2.17
10-50: $1.95
50-100: $1.77
100-250: $1.60
250-500: $1.44
500-1000: $1.21
1000-2500: $1.15
A8293SESTR-T
A8293SESTR-T

IC REG LNB BOOST/LINEAR 20-QFN
Data Sheet
0-9000: $0.73
A8293SETTR-T
A8293SETTR-T

IC REG LNB BOOST/LINEAR 28QFN
Data Sheet
0-9000: $0.77
A8294SESTR-T
A8294SESTR-T

IC REG LNB SGL SUPPLY QFN
Data Sheet
0-9000: $0.76
