Product Summary

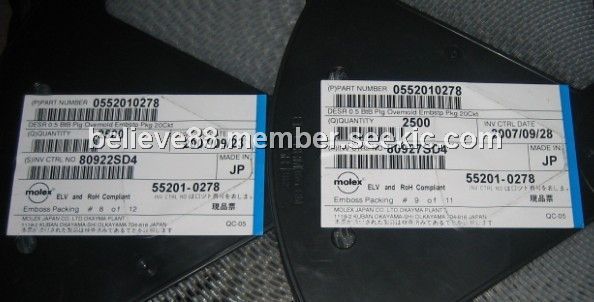

The 55201-0278 is a connector.
Parametrics
55201-0278 absolute maximum ratings: (1)Pitch: 0.5 mm; (2)Mounting Style: SMD/SMT; (3)Mounting Angle: Vertical; (4)Number of Positions / Contacts: 20; (5)Number of Rows: 2; (6)Housing Material: Thermoplastic, High Temperature; (7)Contact Material: Brass; (8)Contact Plating: Gold; (9)Voltage Rating: 50 V; (10)Current Rating: 0.5 A.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 55201-0278 |
Molex |
Board to Board / Mezzanine Connectors .5MM VERT PLG 20CKT SMT W/ SOLDER TAB |
Data Sheet |
Negotiable |
|
||||||
