Product Summary
The 1SMA10CAT3G is a 400 Watt Peak Power Zener Transient Voltage Suppressor. It is designed to protect voltage sensitive components from high voltage, high energy transients. The 1SMA10CAT3G has excellent clamping capability, high surge capability, low zener impedance and fast response time. The 1SMA10CAT3G is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
Parametrics
1SMA10CAT3G absolute maximum ratings: (1)Peak Power Dissipation @ TL = 25℃, Pulse Width = 1 ms, PPK: 400 W; (2)DC Power Dissipation @ TL = 75℃ Measured Zero Lead Length, PD: 1.5W; Derate Above 75℃: 20mW/℃; Thermal Resistance from Junction-to-Lead, RθJL: 50℃/W; (3)DC Power Dissipation (Note 3) @ TA = 25℃, PD: 0.5W; Derate Above 25℃: 4.0mW/℃; Thermal Resistance from Junction-to-Ambient, RθJA: 250℃/W; (4)Operating and Storage Temperature Range TJ, Tstg: -65 to +150℃.
Features
1SMA10CAT3G features: (1)Working Peak Reverse Voltage Range - 10 V to 78 V; (2)Standard Zener Breakdown Voltage Range - 11.7 V to 91.3 V; (3)Peak Power - 400 Watts @ 1 ms; (4)ESD Rating of Class 3 (> 16 kV) per Human Body Model; (5)Response Time is Typically < 1 ns; (6)Flat Handling Surface for Accurate Placement; (7)Package Design for Top Slide or Bottom Circuit Board Mounting; (8)Low Profile Package; (9)Pb-Free Packages are Available.

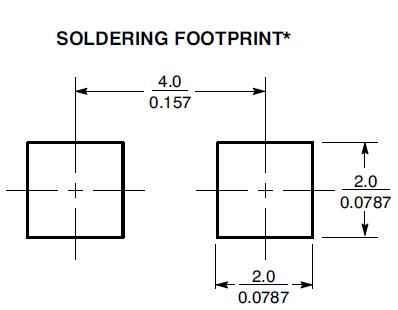

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1SMA10CAT3G |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 10V 400W Bidirectional |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
1SMA10AT3 |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 10V 400W |
Data Sheet |
Negotiable |
|
||||||||||||
|
1SMA10AT3G |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 10V 400W Unidirectional |
Data Sheet |
|
|
||||||||||||
|
1SMA10CAT3 |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 10V 400W |
Data Sheet |
Negotiable |
|
||||||||||||
|
1SMA10CAT3G |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 10V 400W Bidirectional |
Data Sheet |
|
|
||||||||||||
 |
1SMA110Z |
Taiwan Semiconductor |
Zener Diodes 110V |
Data Sheet |
|
|
||||||||||||
|
1SMA11AT3 |
ON Semiconductor |
TVS Diodes - Transient Voltage Suppressors 11V 400W |
Data Sheet |
Negotiable |
|
||||||||||||
