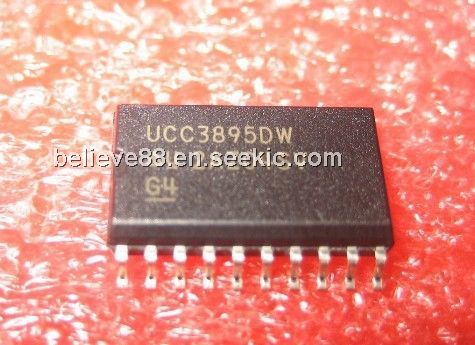

UCC3895DW

UCC3895DW, SOP, bicmos advanced phase shift PWM controller, 100mA, 17V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.70~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 1000 :	1.80 / Piece
1500 ~ 5000 :	1.70 / Piece

PartNumber:: UCC3895DW

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 200000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. JASON LU's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-02

From Other Seller

Part Number:UCC3895DW
US $1.70 - 1.80
Quantity:

piece

Product Summary

The UCC3895DW is a phase shift PWM controller that implements control of a full-bridge power stage by phase shifting the switching of one half-bridge with respect to the other. It allows constant frequency pulse-width modulation in conjunction with resonant zero-voltage switching to provide high efficiency at high frequencies. The part can be used either as a voltage mode or current mode controller. While the UCC3895DW maintains the functionality of the UC3875/6/7/8 family and UC3879, it improves on that controller family with additional features such as enhanced control logic, adaptive delay set, and shutdown capability. Since it is built in BCDMOS, it operates with dramatically less supply current than its bipolar counterparts. The UCC3895DW can operate with a maximum clock frequency of 1MHz.

Parametrics

UCC3895DW absolute maximum ratings: (1)Supply Voltage (IDD < 10mA): 17V; (2)Supply Current: 30mA; (3)REF current: 15mA; (4)OUT Current: 100mA; (5)Analog inputs (EAP, EAN, EAOUT, RAMP, SYNC, ADS, CS, SS/DISB):–0.3V to REF+0.3V; (6)Power Dissipation at TA=+25°C (N Package): 1W; (7)Power Dissipation at TA=+25°C (D Package): 650mW; (8)Storage Temperature: –65°C to +150°C; (9)Junction Temperature: –55°C to +125°C; (10)Lead Temperature (soldering, 10 sec): +300°C.

Features

UCC3895DW features: (1)Programmable Output Turn-on Delay; (2)Adaptive Delay Set; (3)Bidirectional Oscillator Synchronization; (4)Capability for Voltage Mode or Current Mode Control; (5)Programmable Soft Start/Soft Stop and Chip Disable via a Single Pin; (6)0% to 100% Duty Cycle Control; (7)7MHz Error Amplifier; (8)Operation to 1MHz; (9)Low Active Current Consumption (5mA Typical @ 500kHz); (10)Very Low Current Consumption During Undervoltage Lock-out (150μA typical).
