Product Summary

The TL084MFK is an operational amplifier. It is designed to offer a wider selection than any previously developed operational amplifier family. The TL084MFK incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The TL084MFK features high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient. Offset adjustment and external compensation options are available within the TL084MFK.

Parametrics

TL084MFK absolute maximum ratings: (1)Supply voltage VCC+: 18 V; (2)Supply voltage VCC–: –18V; (3)Differential input voltage: ± 30V; (4)Input voltage : ±15V; (5)Duration of output short circuit: unlimited; (6)Operating free-air temperature range: 0 to 70℃; (7)Storage temperature range: – 65 to 150℃; (8)Case temperature for 60 seconds FK package: 260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: 300℃.

Features

TL084MFK features: (1)Low-Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion: 0.003% Typ; (6)High Input Impedance: JFET-Input Stage; (7)Internal Frequency Compensation; (8)Latch-Up-Free Operation; (9)High Slew Rate: 13 V/ms Typ; (10)Common-Mode Input Voltage Range Includes VCC+.

Diagrams

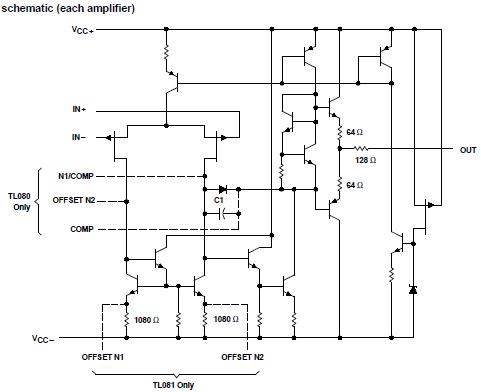

TL084MFK schematic

TL080
TL080
