Product Summary
The L14G3 is a silicon phototransistor mounted in a narrow angle, TO-18 package.
Parametrics
L14G3 absolute maximum ratings: (1)Operating Temperature TOPR: -65 to +125 ℃; (2)Storage Temperature TSTG: -65 to +150 ℃; (3)Soldering Temperature (Iron) TSOL-I: 240 for 5 sec ℃; (4)Soldering Temperature (Flow) TSOL-F: 260 for 10 sec ℃; (5)Collector to Emitter Breakdown Voltage VCEO: 45 V; (6)Collector to Base Breakdown Voltage VCBO: 45 V; (7)Emitter to Base Breakdwon Voltage VEBO: 5 V; (8)Power Dissipation (TA = 25℃) PD: 300 mW; (9)Power Dissipation (TC = 25℃) PD: 600 mW.
Features
L14G3 features: (1)Hermetically sealed package; (2)Narrow reception angle.

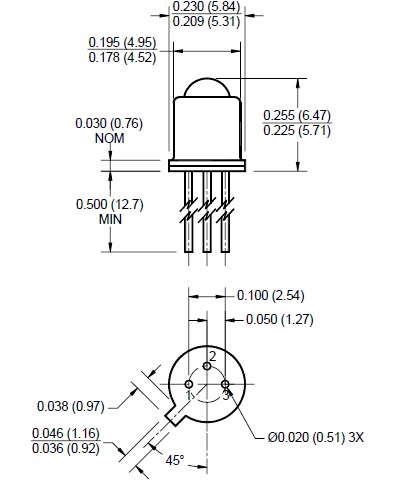

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

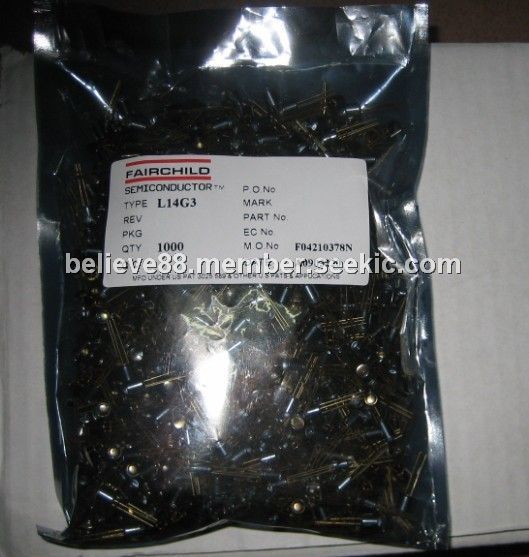

 L14G3 |
Fairchild Semiconductor |
Photodetector Transistors 12mA PHOTO TRANS |
Data Sheet |
Negotiable |
|
||||
 |
L14G3_Q |
Fairchild Semiconductor |
Photodetector Transistors 12mA PHOTO TRANS |
Data Sheet |
Negotiable |
|
||||
