Product Summary

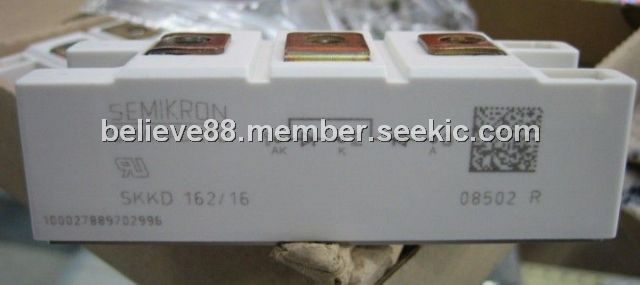

The SKKD162/16 is a Rectifier Diode Module. The applications of the SKKD162/16 include: (1)Non-controllable rectifiers for AC/AC converters; (2)Line rectifiers for transistorized AC motor controllers; (3)Field supply for DC motors.
Parametrics
SKKD162/16 specifications: (1)On the conditions of sin. 180; Tc=85(100)℃, IFAV: 195(150)A; (2)On the conditions of P3/180F; Ta=45℃; B2/B6: 90/115A; (3)On the conditions of P3/180F; Ta=35℃; B2/B6, ID 210/260A; (4)On the conditions of Tvj=25℃, IT=500A, VF: max. 1.5V; (5)On the conditions of Tvj=135℃, V(TO): max. 0.85V; (6)On the conditions of Tvj=135℃, rT: max. 1.2mΩ; (7)On the conditions of Tvj=135℃; VRD=VRRM; IRD: max. 9mA.
Features
SKKD162/16 features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no. E63532.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKKD162/16 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SKKD162/16 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKKD170F |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKKD380/22H4 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKKD42F |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKKD4606 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKKD60F |
Other |
|
Data Sheet |
Negotiable |
|
||||
