Product Summary

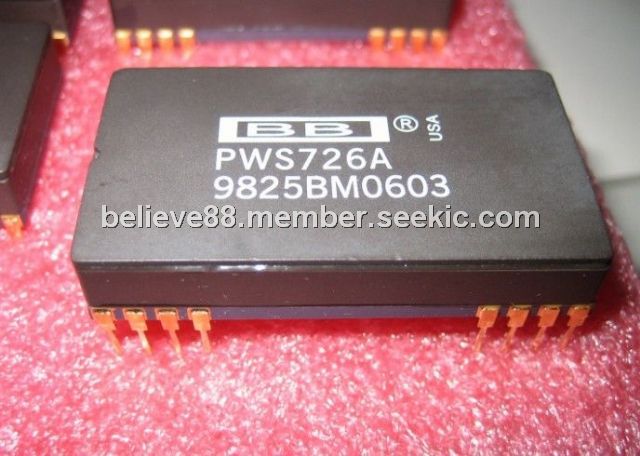

The PWS726A is a DC/DC converter. It converts a single 7 to 18VDC input to bipolar voltages of the same value as the input voltage. It is capable of providing ±15mA at rated voltage accuracy and up to ±40mA without damage. The PWS726A provides reliable, engineered solutions where isolated power is required in critical applications. Applications include: medical equipment, industrial process equipment, test equipment, data acquisition.
Parametrics
PWS726A specifications: (1)On the conditions of Input to Output, 10 seconds, Test Voltages: min=8000 VDC; (2)On the conditions of Input to Output, 60 seconds, min, Test Voltages: min=3500 Vrms; (3)On the conditions of Input to Output, Continuous, AC 60Hz, Rated Voltage: max=3500 Vrms; (4)On the conditions of Input to Output, Continuous DC, Rated Voltage: max=4950 VDC.
Features
PWS726A features: (1)isolated ±7 to ±18vdc output from single 7 to 18vdc supply; (2)±15ma output at rated voltage accuracy; (3)high isolation voltage: 3500vrms; (4)low leakage capacitance: 9pf; (5)low leakage current: 2μa max, at 240vac 50/60hz; (6)high reliability design; (7)available with output synchronization signal for use with iso120 and iso121; (8)protected against output faults; (9)l compact.
