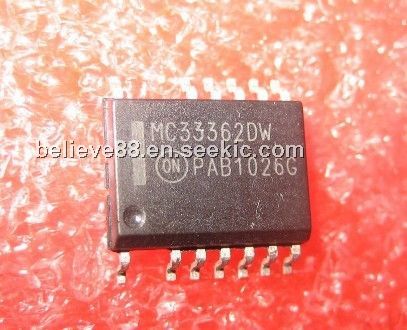

MC33362DW

MC33362DW, high voltage off-line switching regulator, SOP, 2.0A, 500V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
50 ~ 300 :	1.50 / Piece
500 ~ 2500 :	1.00 / Piece

PartNumber:: MC33362DW

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. JASON LU's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-01

From Other Seller

Part Number:MC33362DW
US $1.00 - 1.50
Quantity:

piece

Product Summary

The MC33362DW is a monolithic high voltage switching regulator that is specifically designed to operate from a rectified 120 VAC line source. This integrated circuit features an on–chip 500 V/2.0 A SenseFET power switch, 250 V active off–line startup FET, duty cycle controlled oscillator, current limiting comparator with a programmable threshold and leading edge blanking, latching pulse width modulator for double pulse suppression, high gain error amplifier, and a trimmed internal bandgap reference. Protective features include cycle–by–cycle current limiting, input undervoltage lockout with hysteresis, output overvoltage protection, and thermal shutdown. The MC33362DW is available in a 16–lead dual–in–line and wide body surface mount packages.

Parametrics

MC33362DW absolute maximum ratings: (1)drain voltage:500V; (2)drain current: 2.0A; (3)startup input voltage: 250V; (4)power supply voltage:40V; (5)operating junction temperature:-25 to +150°C; (6)storage temperature:-55 to +150°C.

Features

MC33362DW features: (1)On–Chip 500 V, 2.0 A SenseFET Power Switch; (2)Rectified 120 VAC Line Source Operation; (3)On–Chip 250 V Active Off–Line Startup FET; (4)Latching PWM for Double Pulse Suppression; (5)Cycle–By–Cycle Current Limiting; (6)Input Undervoltage Lockout with Hysteresis; (7)Output Overvoltage Protection Comparator; (8)Trimmed Internal Bandgap Reference; (9)Internal Thermal Shutdown.
