IRM-3638TF4

infrared remote-control receiver module, 0~6 V, Low power consumption, RoHS compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.32~0.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.32~0.35

PartNumber:: IRM-3638TF4

Brand:: Everlight Electronics Co., Ltd - Everlight | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. JASON LU's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-04

From Other Seller

Part Number:IRM-3638TF4
US $0.32 - 0.35
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

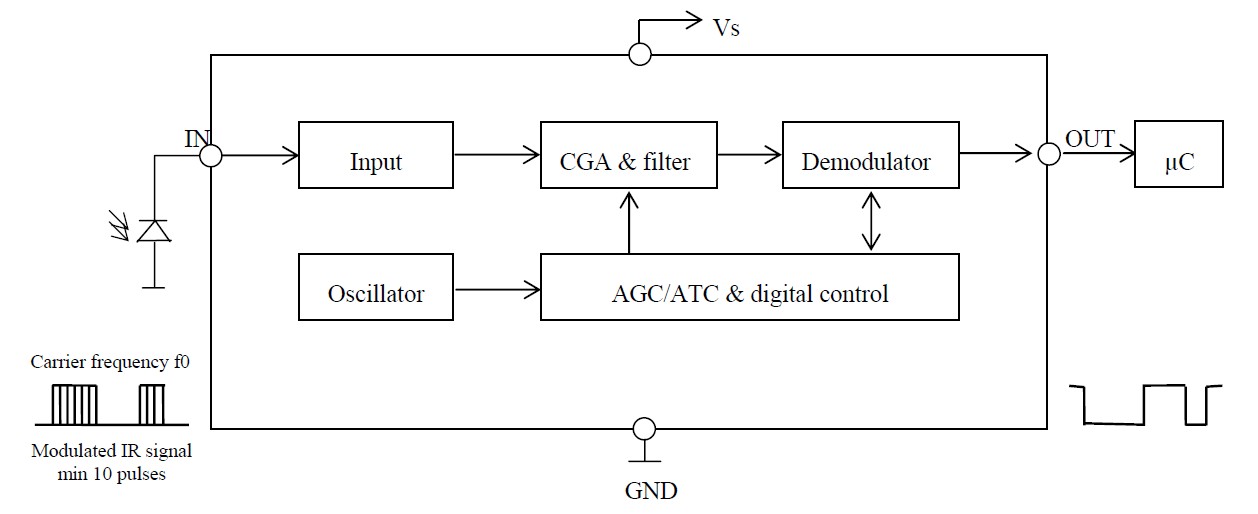

The IRM-3638TF4 is an infrared remote-control receiver module. It is designed for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The applications of the IRM-3638TF4 include: (1)Light detecting portion of remote control; (2)AV instruments such as Audio, TV, VCR, CD, MD, etc; (3)Home appliances such as Air-conditioner, Fan , etc; (4)The other equipments with wireless remote control; (5)CATV set top boxes; (6)Multi-media Equipment.

Parametrics

IRM-3638TF4 absolute maximum ratings: (1)Supply Voltage Vcc: 0~6 V; (2)Operating Temperature Topr: -25 ~ +80 ℃; (3)Storage Temperature Tstg: -40 ~ +85 ℃; (4)Soldering Temperature Tsol: 260 ℃.

Features

IRM-3638TF4 features: (1)Photo detector and preamplifier in one package; (2)Internal filter for PCM frequency; (3)Improved inner shielding against electrical field disturbance; (4)TTL and CMOS compatibility; (5)Low power consumption; (6)Improved immunity against ambient light; (7)Suitable burst length ≧10 cycles/burst; (8)Pb free; (9)BiCMOS manufacture IC; ESD HBM>4000V; MM>250V; (10)The product itself will remain within RoHS compliant version.
