Product Summary
The MB90F482PFV-G is a 16-bit general-purpose FUJITSU microcontroller designed for process control in consumer devices and other applications requiring high-speed real-time processing. The MB90F482PFV-G CPU core instruction set retains the AT architecture of the F2MC*1 family, with additional instructions for high-level languages, expanded addressing mode, enhanced multiply-drive instructions, and complete bit processing. In addition, a 32-bit accumulator is provided to enable long-word processing.
Parametrics
MB90F482PFV-G absolute maximum ratings: (1)Power supply voltage, VCC3: VSS-0.3 to VSS+4.0V; (2)Power supply voltage, VCC5: VSS-0.3 to VSS+7.0V; (3)Power supply voltage, AVCC: VSS-0.3 to VSS+4.0V; (4)Power supply voltage, AVRH: VSS-0.3 to VSS+4.0V; (5)Input voltage, VI: VSS-0.3 to VSS+4.0; (6)Output volatage, VO: VSS-0.3 to VSS+4.0V; (7)Maximum clamp current, ICLAMP: -2.0 to +2.0mA; (8)Power consumption, PD: 320mW; (9)Operating temperature, TA: -40 to +85℃; (10)Storage temperature, Tstg: -55 to +150℃.
Features
MB90F482PFV-G features: (1)Non-multiplex bus/multiplex bus compatible; (2)Enhanced execution speed; (3)4 byte instruction queue; (4)Enhanced interrupt functions; (5)8 levels setting with programmable priority, 8 external interrupts; (6)Data transmission function (mDMA); (7)Up to 16 channels; (8)Embedded ROM; (9)Flash versions: 192 KB, 256 KB, MASK versions: 192 KB; (10)Embedded RAM; (11)Flash versions: 4 KB, 6 KB, 10 KB, MASK versions: 10 KB; (12)General purpose ports.

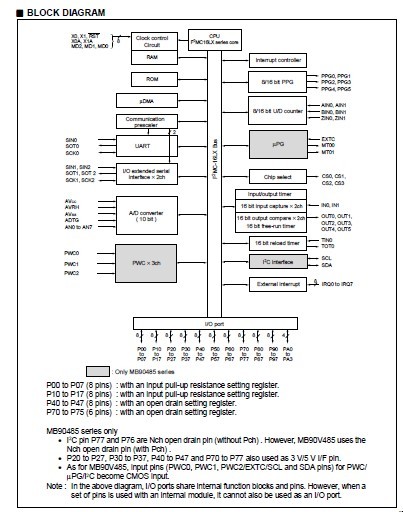

Diagrams
 |
