Product Summary

FEATURES<br />
? Bit configuration : 32,768 words × 8 bits<br />
? Two-wire serial interface : Fully controllable by two ports: serial clock (SCL) and serial data (SDA).<br />
? Operating frequency : 1 MHz (Max)<br />
? Read/write endurance : 1012 times / byte<br />
? Data retention : 10 years ( + 85 °C), 95 years ( + 55 °C), over 200 years ( + 35 °C)<br />
? Operating power supply voltage : 2.7 V to 5.5 V<br />
? Low-power consumption : Operating power supply current 200 μA (Max @1 MHz)<br />
Standby current 27 μA (Typ)<br />
? Operation ambient temperature range<br />
: ? 40 °C to + 85 °C<br />

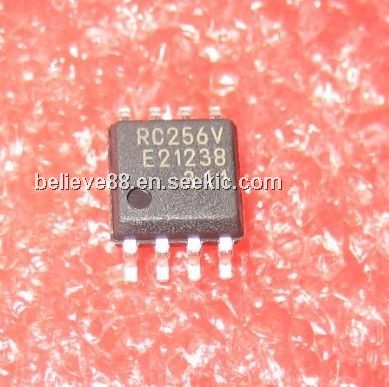

? Package : 8-pin plastic SOP (FPT-8P-M02)<br />
8-pin plastic SOP (FPT-8P-M08)<br />
Both are RoHS compliant
