Product Summary

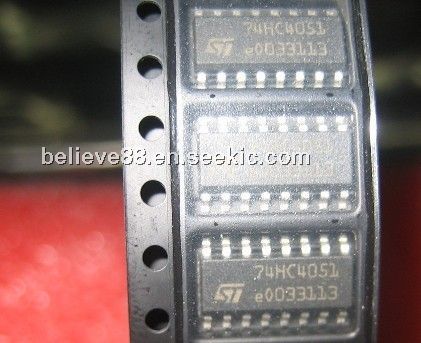

The M74HC4051RM13TR is a single eight-channel analog multiplexer/demultiplexer fabricated with silicon gate C2MOS technology and it is pin to pin compatible with the equivalent metal gate CMOS4000B series.It contains 8 bidirectional and digitally controlled analog switches. A built-in level shifting is included to allow an input range up to ±6V (peak) for an analog signal with digital control signal of 0 to 6V.
Parametrics
M74HC4051RM13TR absolute maximum ratings: (1)supply voltage: -0.5 to +7 V; (2)control input voltage: -0.5 to VCC + 0.5 V; (3)switch I/O voltage VEE: -0.5 to VCC + 0.5 V; (4)control input diode current: ± 20 mA; (5)I/O diode current: ± 20 mA; (6)switch through current: ± 25 mA; (7)DC VCC or ground current: ± 50 mA; (8)power dissipation: 500(*) mW; (9)storage temperature: -65 to +150°C; (10)lead temperature (10 sec): 300°C.
Features
M74HC4051RM13TR features: (1)low power dissipation: ICC = 4μA(MAX.) at TA=25°C; (2)logic level translation to enable 5V logic signal to communicate; (3)with ±5V analog signal; (4)low"on" resistance: 70ΩTYP. (VCC - VEE = 4.5V);50ΩTYP. (VCC - VEE = 9V); (5)wide analog input voltage range: ±6V; (6)fast switching: tpd= 15ns (TYP.) at TA = 25°C; (7)low crosstalk between swithches; (8)high on/off output voltage ratio; (9)wide operating supply voltage ; (10)range (VCC - VEE) = 2V TO 12V; (11)low sine wave distotion: 0.02% at VCC - VEE = 9V; (12)high noise immunity:VNIH = VNIL= 28 % VCC (MIN.); (13)pin and function compatible with 74 SERIES 4051.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M74HC4051RM13TR |
STMicroelectronics |
Multiplexer Switch ICs Ana Multi/Demultiplx |
Data Sheet |
|
|
|||||||||||||||||
