Product Summary
The ITR-8102 is a light reflection switch which includes a GaAs IRLED transmitter and a NPN photo-transistor with a high photosensitive receiver for short distance, operating in the infrared range. Both components are mounted side-by-side in a plastic package. The applications of the ITR-8102 include: Camera, VCR, Floppy disk driver, Cassette type recorder, Various microcomputer control equipment.
Parametrics
ITR-8102 absolute maximum ratings: (1)Power Dissipation at(or below) 25℃ Free Air Temperature Pd: 75 mW; (2)Reverse Voltage VR: 5 V; (3)Forward Current IF: 50 mA; (4)Peak Forward Current Pulse width ≤100μs, Duty cycle=1% IFP: 1 A; (5)Collector Current IC: 50 mA; (6)Collector-Emitter Voltage B VCEO: 30 V; (7)Emitter-Collector Voltage B VECO: 5 V; (8)Operating Temperature Topr: -25~+85 ℃; (9)Storage Temperature Tstg: -40~+85 ℃; (10)Lead Soldering Temperature(1/16 inch from body for 5 seconds) Tsol: 260 ℃.
Features
ITR-8102 features: (1)Fast response time; (2)High sensitivity; (3)Cutting wavelength λ=840nm; (4)Thin; (5)Compact.

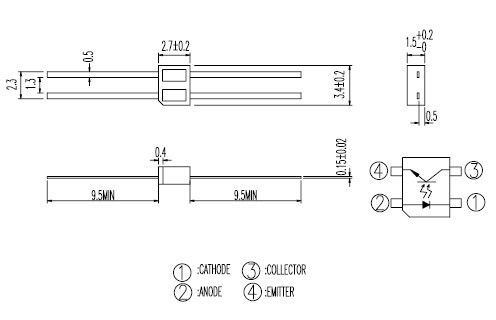

Diagrams
