Product Summary

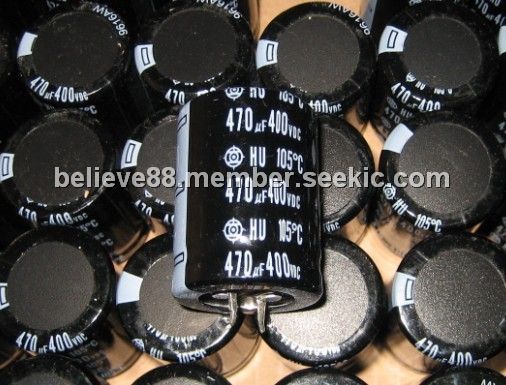

The HU2G471MCZS5WPEC is a snap mount type aluminum electrolytic capacitor.

Parametrics

HU2G471MCZS5WPEC absolute maximum ratings: (1)Temperature range: –40 to +105℃ (200, 250V.DC); –25 to +105℃ (400 to 450VDC); (2)Capacitance tolerance: ±20% (20℃,120Hz); (3)Rated voltage: 200 to 450VDC; (4)Leakage current: 0.02CV (μA) or 3mA.

Features

HU2G471MCZS5WPEC features: (1)The size is reduced by 10 to 16% of conventional HU5 through development of etched foil technology.

Diagrams

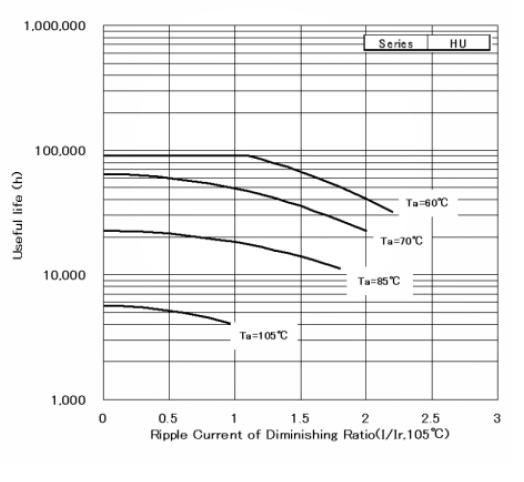

HU2G471MCZS5WPEC diagram
