Product Summary
The HSMP-381F is a Low Distortion Attenuator Diode. It is specifically designed for low distortion attenuator applications. The HSMP-381F features ultra low parasitic inductance in the SOT-23 and SOT-323 packages. The HSMP-381F is specifically designed for use at frequencies which are much higher than the upper limit for conventional diodes. A SPICE model is not available for PIN diodes as SPICE does not provide for a key PIN diode characteristic, carrier lifetime.
Parametrics
HSMP-381F absolute maximum ratings: (1)If, Forward Current (1μs Pulse): 1Amp; (2)PIV, Peak Inverse Voltage: Same as VBR; (3)Tj, Junction Temperature: 150℃; (4)Tstg, Storage Temperature: -65 to 150℃; (5)θjc, Thermal Resistance: 500℃/W.
Features
HSMP-381F features: (1)Diodes Optimized for: Low Distortion Attenuating; Microwave Frequency Operation; (2)Surface Mount Packages: Single and Dual Versions; Tape and Reel Options Available; (3)Low Failure in Time (FIT) Rate.

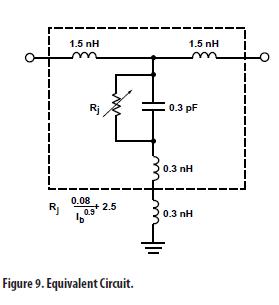

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HSMP-381F |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
HSMP-381F-BLKG |
Avago Technologies |
PIN Diodes 100 VBR 0.35 pF |
Data Sheet |
|
|
||||||||||||
|

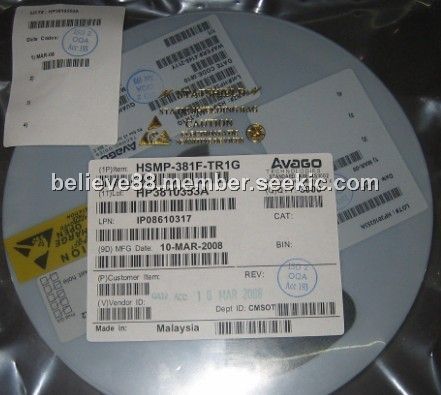

HSMP-381F-TR1G |
Avago Technologies |
PIN Diodes 100 VBR 0.35 pF |
Data Sheet |
|
|
||||||||||||
|
HSMP-381F-TR2G |
Avago Technologies |
PIN Diodes 100 VBR 0.35 pF |
Data Sheet |
|
|
||||||||||||
 |
HSMP-381F-TR1 |
|
DIODE PIN ATTENUATOR 100V SOT323 |
Data Sheet |
Negotiable |
|
||||||||||||
