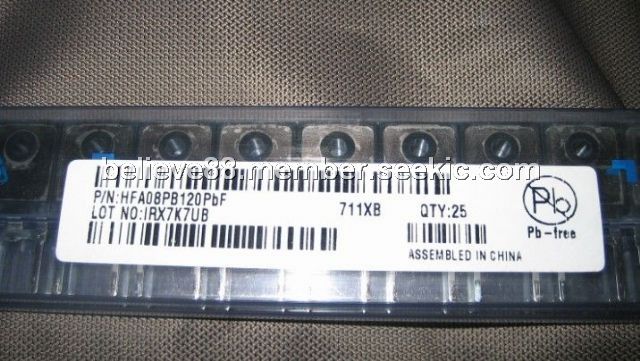

HFA08PB120PBF

ultrafast soft recovery diode, 1200 V, 8 A, Very low IRRM, Ultrasoft recovery

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.85~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.85~2.00

PartNumber:: HFA08PB120PBF

Brand:: Vishay Telefunken - Vishay | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. JASON LU's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-04

From Other Seller

Part Number:HFA08PB120PBF
US $1.85 - 2.00
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HFA08PB120PBF is a 8A ultrafast soft recovery diode. Employing the latest in epitaxial construction and advanced processing techniques it features a superb combination of characteristics which result in performance which is unsurpassed by any rectifier previously available. With basic ratings of 1200 V and 8 A continuous current, the HFA08PB120PBF is especially well suited for use as the companion diode for IGBTs and MOSFETs. The HFA08PB120PBF is ideally suited for applications in power supplies and power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed.

Parametrics

HFA08PB120PBF absolute maximum ratings: (1)Cathode to anode voltage VR: 1200 V; (2)On the condition of TC = 100 ℃, Maximum continuous forward current IF: 8 A; (3)Single pulse forward current IFSM: 130 A; (4)Maximum repetitive forward current IFRM: 32 A; (5)On the condition of TC = 25 ℃, Maximum power dissipation PD: 73.5 W; On the condition of TC = 100 ℃, PD: 29 W; (6)Operating junction and storage temperature range TJ, TStg: - 55 to + 150 ℃.

Features

HFA08PB120PBF features: (1)Ultrafast recovery; (2)Ultrasoft recovery; (3)Very low IRRM; (4)Very low Qrr; (5)Specified at operating conditions; (6)Designed and qualified for industrial level.
