GP1A30R

OPIC Photointerrupter, 65 mA, 100 mW, 7 V, High sensing accuracy, TTL compatible output

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.80~7.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.80~7.00

PartNumber:: GP1A30R

Brand:: Sharp Electrionic Components - Sharp | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. JASON LU's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-07

From Other Seller

Part Number:GP1A30R
US $6.80 - 7.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

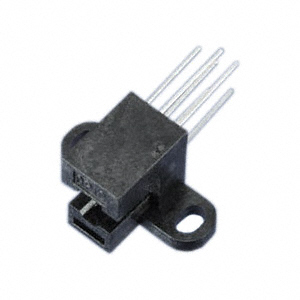

The GP1A30R is an OPIC Photointerrupter with Encoder Function.It is suitable for Electronic typewriters, printers and Numerical control machines.

Parametrics

GP1A30R absolute maximum ratings: (1)input, Forward current, IF: 65 mA; Peak forward current, IFM: 1 A; Reverse voltage, VR: 6 V; Power dissipation, P: 100 mW; (2)Output, Supply voltage, VCC: 7 V; Low level output current, IOL: 20 mA; Power dissipation, PO: 250 mW; (3)Operating temperature, Topr: 0 to + 70℃; (4)Storage temperature, Tstg: - 40 to + 80℃; (5)*2Soldering temperature, Tsol: 260℃.

Features

GP1A30R features: (1)2-phase ( A, B ) digital output; (2)Possible to use plastic disk; (3)High sensing accuracy ( Disk slit pitch : 0.7mm ); (4)TTL compatible output; (5)Compact and light.
