Product Summary
The FM28V020-SGTR is a 32K × 8 nonvolatile memory that reads and writes like a standard SRAM. A ferroelectric random access memory or F-RAM is nonvolatile, which means that data is retained after power is removed. The FM28V020-SGTR provides data retention for over 10 years while eliminating the reliability concerns, functional disadvantages, and system design complexities of battery-backed SRAM (BBSRAM). In-system operation of the FM28V020-SGTR is very similar to other RAM devices and can be used as a drop-in replacement for standard SRAM.
Parametrics
FM28V020-SGTR absolute maximum ratings: (1)VDD Power Supply Voltage with respect to VSS: -1.0V to +4.5V; (2)VIN Voltage on any signal pin with respect to VSS: -1.0V to +4.5V and VIN < VDD+1V; (3)TSTG Storage Temperature: -55℃ to +125℃; (4)TLEAD Lead Temperature (Soldering, 10 seconds): 260℃; (5)VESD Electrostatic Discharge Voltage - Human Body Model (JEDEC Std JESD22-A114-B): 2kV; - Charged Device Model (JEDEC Std JESD22-C101-A): 1.25kV; - Machine Model (JEDEC Std JESD22-A115-A): 200V; (6)Package Moisture Sensitivity Level: MSL-2.
Features
FM28V020-SGTR features: (1)No battery concerns ; (2)Monolithic reliability ; (3)True surface mount solution, no rework steps ; (4)Superior for moisture, shock, and vibration ; (5)Resistant to negative voltage undershoots ; (6)2.0V to 3.6V power supply; (7)standby current 90μA(typ); (8)active current 7mA(typ); (9)JEDEC 36K × 8 SRAM pinout; (10)60ns access time, 90ns cycle time.

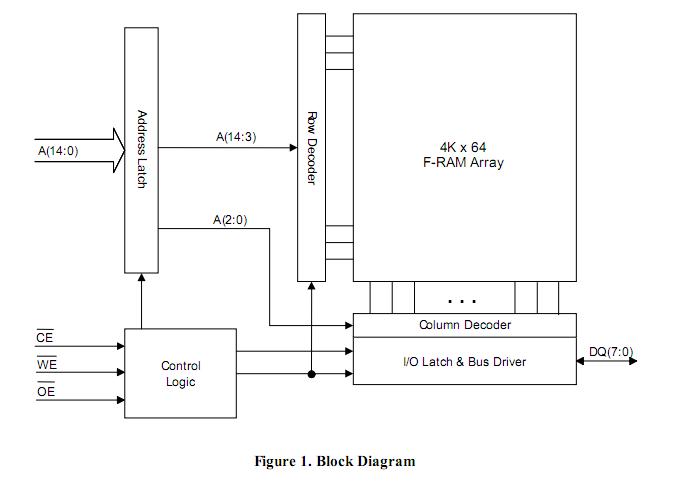

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM28V020-SGTR |
Ramtron |
F-RAM 256K (32Kx8) 60ns F-RAM |
Data Sheet |
|
|
||||||||||||
