Product Summary
The FI-WE21P-HFE is a connector. It is suitable for LCD interfaces, LCD inverter, PC, PDA, DVC, mobile phones, digital still cameras, various state-of-the-art miniature devices.
Parametrics
FI-WE21P-HFE absolute maximum ratings: (1)current rating: 1Amps; (2)DW voltage: 500VACrms; (3)insulation resistance: 100 megohms min; (4)contact resistance: 400milliohms max; (5)operating temperature: -40 to 80℃.
Features
FI-WE21P-HFE features: (1)excellent in EMI shielding effect (version with metallic shell) receptacle with hold-down for preventing float up when soldering, and offering additional retention on board. The hold-down is incorporated with shell, enabling connection to the ground on board; (2)cable side plug comes in three types: discrete wire crimp type, cable harness type, and ZIF type for FPC; (3)ZIF (zero insertion force) configuration for FPC application. No force is directly applied when inserting FPC. Easy to operate. The shell is connected to the ground on one side of FPC when inserting it; (4)one-row type receptacle and FPC plug come in two types: standard and reverse. Both board face mount and back mount are possible, enabling insertion of plug in the same direction (face/back); (5)key for preventing erroneous mating; (6)friction lock; (7)receptacles can be supplied in embossed tape allowing automatic mounting.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FI-WE21P-HFE |
JAE Electronics |
FFC / FPC Connectors 21P RECEPTACLE DOUBLE ROW |
Data Sheet |
|
|
||||||||||||
|

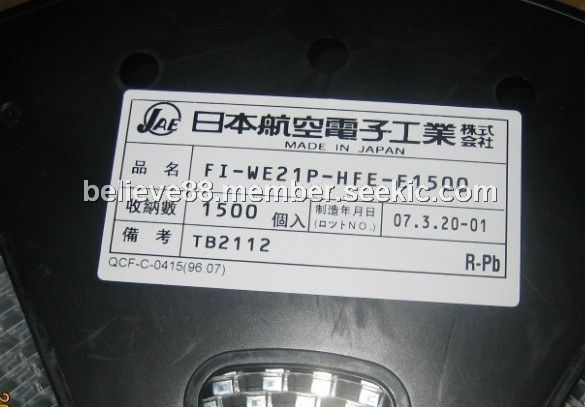

FI-WE21P-HFE-E1500 |
JAE Electronics |
FFC / FPC Connectors 21p PCB to Cable LCD Compatible |
Data Sheet |
|
|
||||||||||||
