Product Summary

The CA3130AT is op amps that combine the advantage of both CMOS and bipolar transistors.The CA3130AT Series circuits operate at supply voltages ranging from 5V to 16V, (±2.5V to ±8V). They can be phase compensated with a single external capacitor, and have terminals for adjustment of offset voltage for applications requiring offset-null capability. Terminal provisions are also made to permit strobing of the output stage.

Parametrics

CA3130AT absolute maximum ratings: (1)DC Supply Voltage (Between V+ And V- Terminals): 16V; (2)Differential Input Voltage: 8V; (3)DC Input Voltage: (V+ +8V) to (V- -0.5V); (4)Input-Terminal Current: 1mA; (5)Output Short-Circuit Duration: Indefinite.

Features

CA3130AT features: (1)Ideal for Single-Supply Applications; (2)Common-Mode Input-Voltage Range Includes Negative Supply Rail; Input Terminals can be Swung 0.5V Below Negative Supply Rail; (3)CMOS Output Stage Permits Signal Swing to Either (or both) Supply Rails.

Diagrams

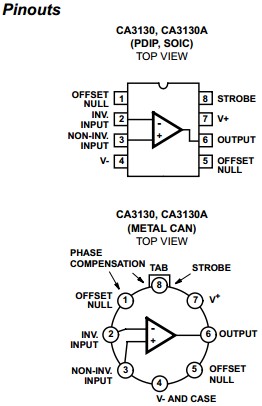

CA3130AT pinout diagram
