Product Summary
The BZT52B13-V is a Small Signal Zener Diode.
Parametrics
BZT52B13-V absolute maximum ratings: (1)Power dissipation, Ptot: 500mW; (2)Power dissipation, Ptot: 410mW.
Features
BZT52B13-V features: (1)Silicon Planar Power Zener Diodes; (2)These diodes are also available in other case styles and other configurations including: the SOT-23 case with type designation BZX84 series, the dual zener diode common anode configuration in the SOT-23 case with type designation AZ23 series and the dual zener diode common cathode configuration in the SOT-23 case with type designation DZ23 series; (3)The Zener voltages are graded according to the international E 24 standard; (4)Lead (Pb)-free component; (5)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

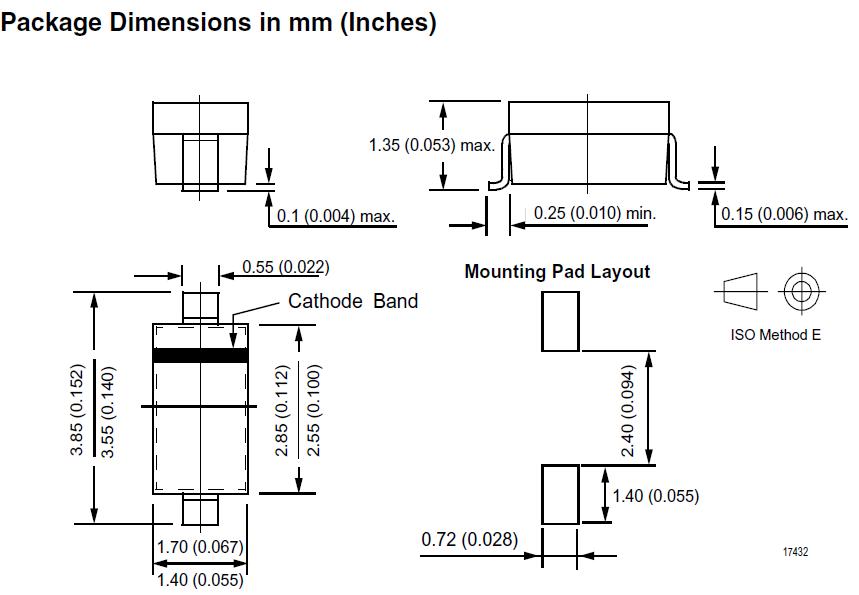

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

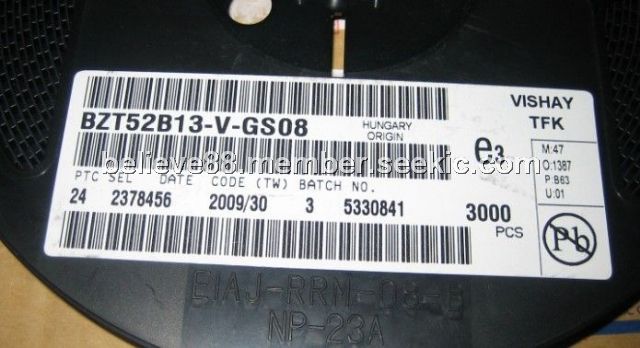

 BZT52B13-V-GS08 |
Vishay Semiconductors |
Zener Diodes 13 Volt 0.5W 2% |
Data Sheet |
|
|
||||||||||||
|
BZT52B13-V-GS18 |
Vishay Semiconductors |
Zener Diodes 13 Volt 0.5W 2% |
Data Sheet |
|
|
||||||||||||
