Product Summary
The AD7663ASTZ is a 16-bit, 250 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. It contains a high speed 16-bit sampling ADC, a resistor input scaler that allows various input ranges, an internal conversion clock, error correction circuits, and both serial and parallel system interface ports.
Parametrics
AD7663ASTZ absolute maximum ratings: (1)Ground Voltage Differences, AGND, DGND, OGND: ±0.3 V; (2)Internal Power Dissipation: 700 mW; (3)Internal Power Dissipation: 2.5 W; (4)Junction Temperature: 150°C; (5)Storage Temperature Range: –65°C to +150°C; (6)Lead Temperature Range (Soldering 10 sec): 300°C.
Features
AD7663ASTZ features: (1)Throughput: 250 kSPS; (2)INL: ±3 LSB Max (±0.0046% of Full Scale); (3)16-Bit Resolution with No Missing Codes; (4)Both AC and DC Specifications; (5)No Pipeline Delay; (6)Power-Down Mode: 7μW Max; (7)Pin-to-Pin Compatible with the AD7660/AD7664/AD7665.

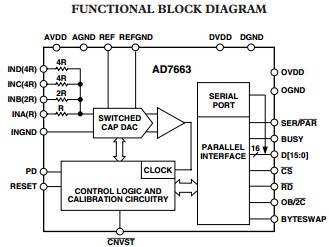

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7663ASTZ |
|
IC ADC 16BIT CMOS 48-LQFP |
Data Sheet |
|
|
||||||||||||||||
|
AD7663ASTZRL |
|
IC ADC 16BIT CMOS 48-LQFP T/R |
Data Sheet |
|
|
||||||||||||||||
