Product Summary

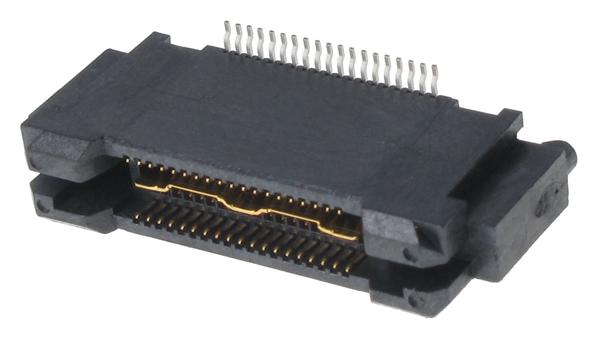

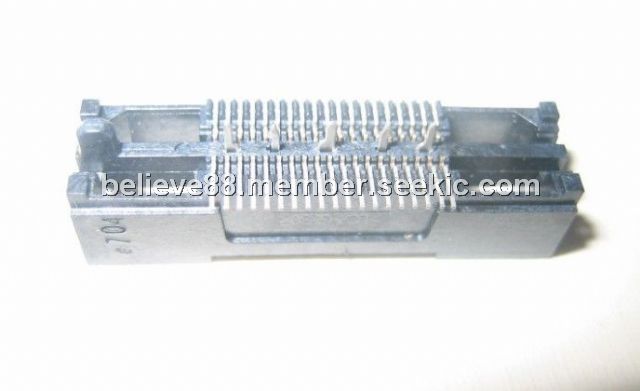

The 5767054-1 is a Centerline Matched Impedance Connector.
Parametrics
5767054-1 specifications: (1)Product Category: Power to the Board; (2)RoHS: Details; (3)Series: MICTOR Series; (4)Product Type: Receptacles; (5)Pitch: 0.64 mm; (6)Number of Positions / Contacts: 38; (7)Mounting Style: Through Hole; (8)Contact Plating: Gold (5) over Palladium Nickel; (9)Contact Material: Copper Alloy; (10)Housing Material: Liquid Crystal Polymer (LCP); (11)Packaging: Tube; (12)Factory Pack Quantity: 21.
Features
5767054-1 features: (1)Product Type = Connector; (2)Mount Angle = Vertical ; (3)Termination End Plating = Tin over Nickel; (4)Number of Positions = 38; (5)Vacuum Cover = Without; (6)Centerline (mm [in]) = 0.64 [0.025] ; (7)Ground Bus Lead Length (mm [in]) = 2.74 [0.108]; (8)Ground Bus Material = Phosphor Bronze; (9)Ground Bus Mating Area Plating = Gold (5) over Palladium Nickel; (10)Ground Bus Terminating Area = Tin over Nickel; (11)Connector Style = Receptacle; (12)Housing Material = Liquid Crystal Polymer (LCP).

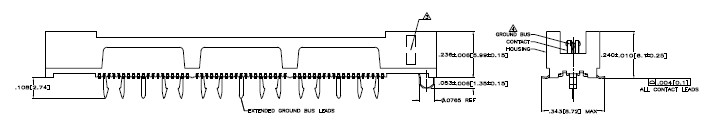

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5767054-1 |
TE Connectivity / AMP |
Power to the Board 38P RECEPTACLE |
Data Sheet |
|
|
|||||||||||||
