Product Summary

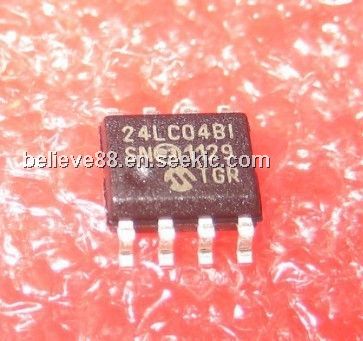

The 24LC04BT-I/SN is organized as two blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 μA and 1 mA, respectively. The 24LC04BT-I/SN also has a page write capability for up to 16 bytes of data. The 24LC04BT-I/SN is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN, 2x3 TDFN, and MSOP packages and is also available in the 5-lead SOT-23, or 4-lead Chip Scale package.
Parametrics
24LC04BT-I/SN absolute maximum ratings: (1)VCC: 6.5V; (2)All inputs and outputs w.r.t. VSS: -0.3V to VCC +1.0V; (3)Storage temperature: -65°C to +150°C; (4)Ambient temperature with power applied: -40°C to +125°C; (5)ESD protection on all pins: ≥ 4 kV.
Features
24LC04BT-I/SN features: (1)Single Supply with Operation down to 1.7V for 24AA04 Devices, 2.5V for 24LC04B Devices; (2)Low-Power CMOS Technology: - Read current 1 mA, typical; (3)Schmitt Trigger inputs for Noise Suppression; (4)Output Slope Control to eliminate Ground Bounce; (5)100 kHz and 400 kHz Clock Compatibility; (6)Page Write Time 3 ms, typical; (7)16-Byte Page Write Buffer.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 24LC04BT-I/SN |
Microchip Technology |
EEPROM 512x8 - 2.5V |
Data Sheet |
|
|
||||||||
|
24LC04BT-I/SNG |
Microchip Technology |
EEPROM 512x8 - 2.5V Lead Free Package |
Data Sheet |
|
|
||||||||
