Product Summary

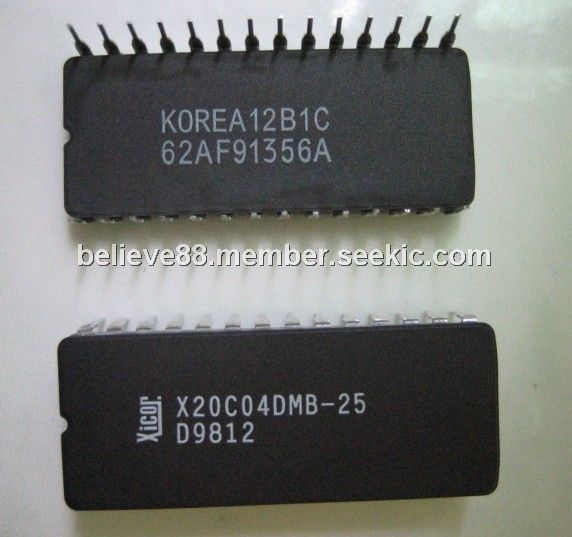

The X20C04DMB-25 is a 512 x 8 NOVRAM featuring a static RAM overlaid bit-for-bit with a nonvolatile electrically erasable PROM (E2PROM). The X20C04DMB-25 is fabricated with advanced CMOS floating gate technology to achieve low power and wide power-supply margin. The X20C04DMB-25 features the JEDEC approved pinout for bytewide memories, compatible with industry standard RAMs, ROMs, EPROMs, and E2PROMs.

Parametrics

X20C04DMB-25 absolute maximum ratings: (1)Temperature under Bias: –65 to +135℃; (2)Storage Temperature:–65 to +150℃; (3)Voltage on any Pin with Respect to VSS: –1V to +7V; (4)D.C. Output Current: 10mA; (5)Lead Temperature (Soldering, 10 seconds): 300℃.

Features

X20C04DMB-25 features: (1)High Reliability endurance: 1,000,000 Nonvolatile Store; (2)Operations; retention: 100 Years Minimum; (3)Power-on Recall: E2PROM Data Automatically Recalled Into; (4)SRAM Upon Power-up; Lock Out Inadvertent Store Operations; (5)Low Power CMOS: standby: 250mA; (6)Infinite E2PROM Array Recall, and RAM Read and Write Cycles; (7)Compatible with X2004.

Diagrams

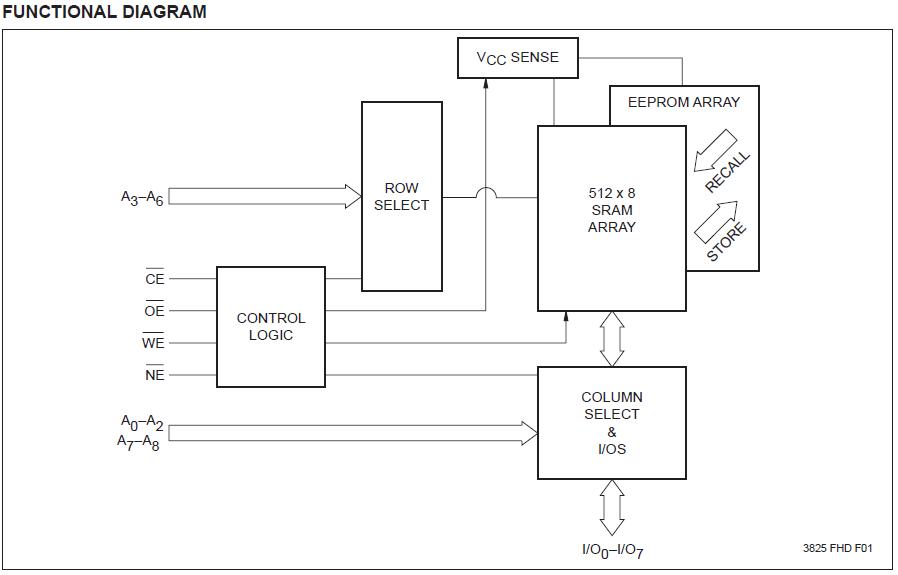

X20C04DMB-25 functional diagram
