Product Summary
The TPV597 is a UHF linear power transistor. The TPV597 is designed for 1.0 watt stages in Band V TV transposer amplifiers. Gold metallized dice and diffused emitter ballast resistors are used to enhance reliability, ruggedness and linearity.
Parametrics
TPV597 absolute maximum ratings: (1)Collector–Emitter Voltage, VCEO: 24 Vdc; (2)Collector–Base Voltage, VCBO: 45 Vdc; (3)Emitter–Base Voltage, VEBO: 3.5 Vdc; (4)Collector Current, Continuous, IC: 1.4 Adc; (5)Total Device Dissipation @ TC = 25℃, PD: 19W; Derate above 25℃: 0.11W/℃; (6)Operating Junction Temperature, TJ: 200℃; (7)Storage Temperature Range, Tstg: –65 to +200℃.
Features
TPV597 features: (1)Band IV and V (470-60 MHz); (2)1.0 W Pref @ -58 dB IMD; (3)20 V VCC; (4)High Gain 11 dB Typ, Class A @ f = 860 MHz; (5)Gold Metallization for Reliability.

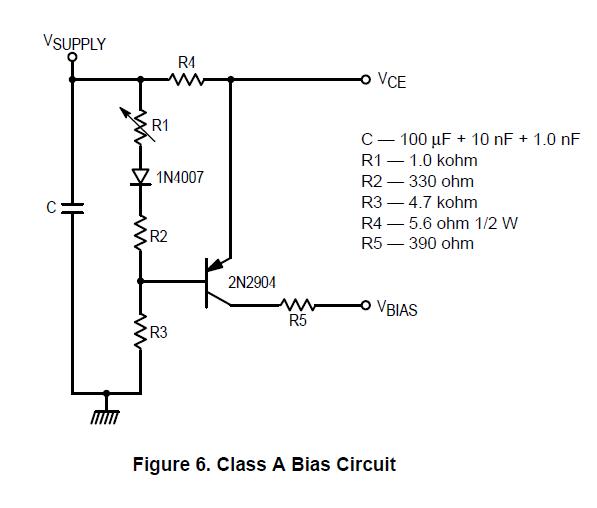

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPV597 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
