Product Summary

The STP9NK50ZFP is an N-channel 500V-0.72ohm-7.2A TO-220/TO-220FP/D2PAK Zener-Protected, superMESH power MOSFET. The SuperMESH series is obtained through an extreme optimization of ST well established stripbased PowerMESH layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh products.

Parametrics

STP9NK50ZFP absolute maximum ratings: (1)Drain-source Voltage (VGS = 0): 500V; (2)Drain-gate Voltage (RGS = 20 kΩ): 500V; (3)Gate- source Voltage: ±30 V; (4)Drain Current (continuous) at TC = 25°C: 7.2A, Drain Current (continuous) at TC = 100°C: 4.5A; (5)Total Dissipation at TC = 25°C: 110W; (6)Gate source ESD(HBM-C=100pF, R=1.5KΩ): 3500V; (7)Operating Junction Temperature: -55 to 150°C; (8)Storage Temperature: -55 to 150°C.

Features

STP9NK50ZFP features: (1)typical RDS(on) = 0.72 Ω; (2)extremely high dv/dt capability; (3)100% avalanche tested; (4)gate charge minimized; (5)very low intrinsic capacitances; (6)very good manufacturing repeatbility.

Diagrams

STP9NK50ZFP  internal schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

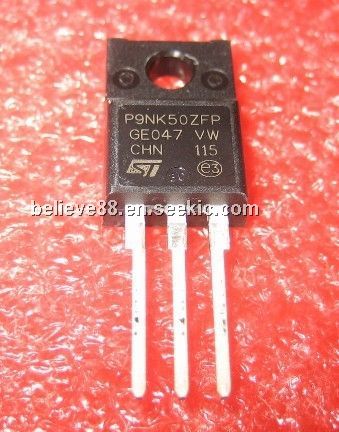

STP9NK50ZFP
STP9NK50ZFP

STMicroelectronics

MOSFET N-Ch, 500V-0.72ohms 7.2A

Data Sheet

0-1: $1.50
1-10: $1.34
10-100: $1.15
100-250: $1.02
