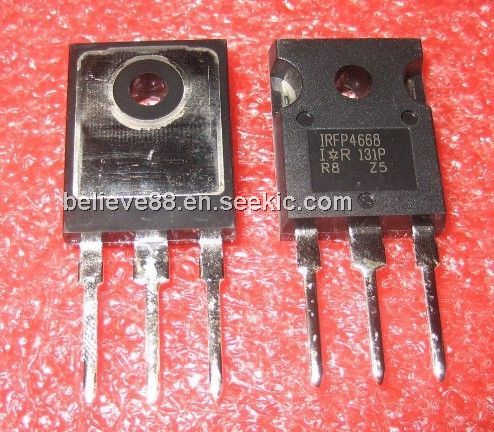

Product Summary

The IRFP4668PBF is a HEXFET Power MOSFET. The IRFP4668PBF can be applied inhigh efficiency synchronous, rectification in SMPS, uninterruptible power supply and high speed power switching, and hard switched and high frequency circuits.

Parametrics

IRFP4668PBF absolute maximum ratings: (1)Continuous Drain Current: 130A; (2)Maximum Power Dissipation: 520W; (3)Linear Derating Factor: 3.5 W/°C; (4)Gate-to-Source Voltage: ± 30V; (5)Operating Junction and Storage Temperature Range: -55 to + 175°C; (6)Soldering Temperature, for 10 seconds: 300.

Features

IRFP4668PBF features: (1)Improved Gate, Avalanche and Dynamic dV/dt Ruggedness; (2)Fully Characterized Capacitance and Avalanche SOA; (3)Enhanced body diode dV/dt and dI/dt Capability; (4)Lead-Free.

Diagrams

IRFP4668PBF pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFP4668PBF
IRFP4668PBF
International Rectifier
MOSFET MOSFT 200V 130A 2.6mOhm 161nC Qg
Data Sheet
0-1: $4.84
1-25: $3.54
25-100: $2.80
100-250: $2.69
