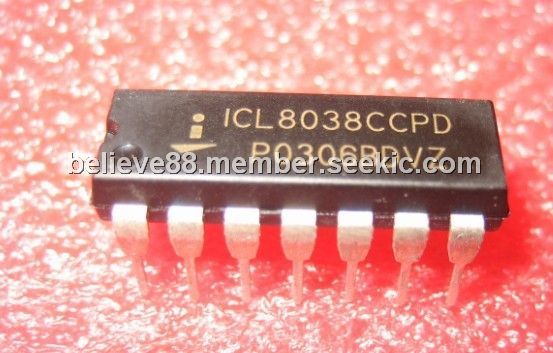

ICL8038CCPD

precision waveform generator, 36V, 25mA, High Level Outputs, Low Distortion

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.80~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.80~6.00

PartNumber:: ICL8038CCPD

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. JASON LU's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-04

From Other Seller

Part Number:ICL8038CCPD
US $5.80 - 6.00
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

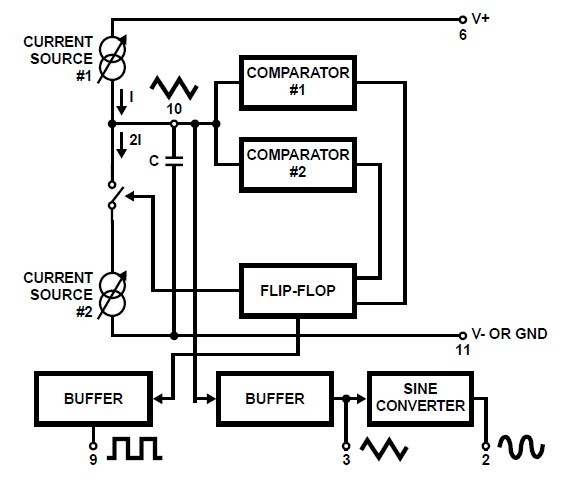

The ICL8038CCPD is a precision waveform generator. The ICL8038CCPD is a monolithic integrated circuit capable of producing high accuracy sine, square, triangular, sawtooth and pulse waveforms with a minimum of external components. The frequency (or repetition rate) can be selected externally from 0.001Hz to more than 300kHz using either resistors or capacitors, and frequency modulation and sweeping can be accomplished with an external voltage. The ICL8038CCPD is fabricated with advanced monolithic technology, using Schottky barrier diodes and thin film resistors, and the output is stable over a wide range of temperature and supply variations.

Parametrics

ICL8038CCPD absolute maximum ratings: (1)Supply Voltage (V- to V+): 36V; (2)Input Voltage (Any Pin): V- to V+; (3)Input Current (Pins 4 and 5): 25mA; (4)Output Sink Current (Pins 3 and 9): 25mA.

Features

ICL8038CCPD features: (1)Low Frequency Drift with Temperature: 250ppm/oC; (2)Low Distortion: 1% (Sine Wave Output); (3)High Linearity: 0.1% (Triangle Wave Output); (4)Wide Frequency Range: 0.001Hz to 300kHz; (5)Variable Duty Cycle: 2% to 98%; (6)High Level Outputs: TTL to 28V; (7)Simultaneous Sine, Square, and Triangle Wave Outputs; (8)Easy to Use - Just a Handful of External Components Required.
