Product Summary

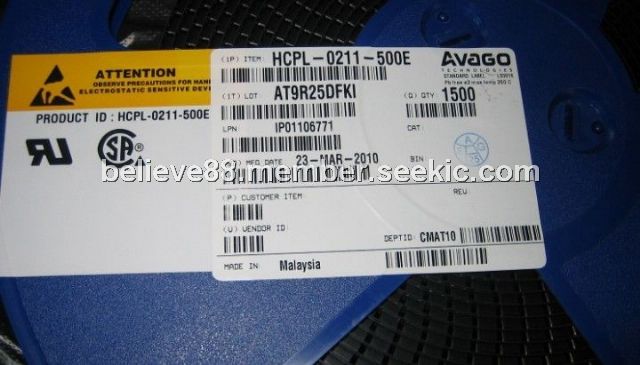

The HCPL-0211-500E is a very high CMR, wide VCC logic gate optocoupler. It contains a GaAsP LED. It has totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logiccompatible waveforms, eliminating the need for additional waveshaping. The applications of the HCPL-0211-500E include: (1)Isolation of High Speed Logic Systems; (2)Computer-Peripheral Interfaces; (3)Microprocessor System Interfaces; (4)Ground Loop Elimination; (5)Pulse Transformer Replacement; (6)High Speed Line Receiver; (7)Power Control Systems.

Parametrics

HCPL-0211-500E absolute maximum ratings: (1)Storage Temperature TS: min=-55℃, max=125℃; (2)Operating Temperature TA: min=-40℃, max=85℃; (3)Average Forward Input Current IF(AVG): max=10mA; (4)Reverse Input Voltage VR: max=5V; (5)Average Output Current IO: MAX=25mA; (6)Supply Voltage VCC: min=0, max=20V; (7)Output Voltage VO: min=-0.5V, max=20V; (8)Total Package Power Dissipation PT: 210mW.

Features

HCPL-0211-500E features: (1)10 kV/μs Minimum Common Mode Rejection (CMR) at VCM = 1000 V; (2)Wide Operating VCC Range: 4.5 to 20 Volts; (3)300 ns Propagation Delay Guaranteed over the Full Temperature Range; (4)5 Mbd Typical Signal Rate; (5)Low Input Current (1.6 mA to 1.8 mA); (6)Hysteresis; (7)Totem Pole Output (No Pullup Resistor Required); (8)Available in 8-Pin DIP, SOIC-8, Widebody Packages; (9)Guaranteed Performance from -40℃ to 85℃.

Diagrams

HCPL-0211-500E functional diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCPL-0211-500E
HCPL-0211-500E

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-1: $2.28
1-25: $1.87
25-100: $1.66
100-250: $1.49
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCPL-0201
HCPL-0201

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-1: $1.95
1-25: $1.60
25-100: $1.42
100-250: $1.27
HCPL-0201#060
HCPL-0201#060

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-280: $1.30
280-500: $1.22
500-1000: $1.15
1000-2000: $1.08
HCPL-0201#500
HCPL-0201#500

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-885: $1.22
885-1500: $1.15
1500-3000: $1.08
3000-6000: $1.01
HCPL-0201#560
HCPL-0201#560

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-885: $1.24
885-1500: $1.17
1500-3000: $1.10
3000-6000: $1.03
HCPL-0201-000E
HCPL-0201-000E

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-1: $1.95
1-25: $1.60
25-100: $1.42
100-250: $1.27
HCPL-0201-060E
HCPL-0201-060E

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-280: $1.30
280-500: $1.22
500-1000: $1.15
1000-2000: $1.08
