Product Summary

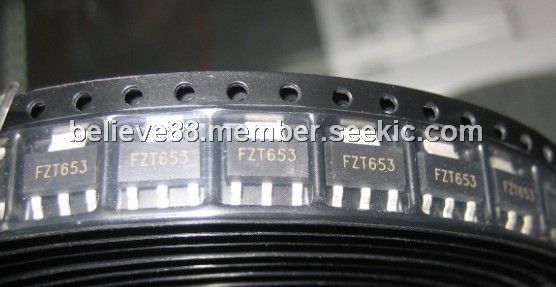

The FZT653TA is a high performance transistor.

Parametrics

FZT653TA absolute maximum ratings: (1)Collector-Base Voltage VCBO: 120 V; (2)Collector-Emitter Voltage VCEO: 100 V; (3)Emitter-Base Voltage VEBO: 5 V; (4)Peak Pulse Current ICM: 6 A; (5)Continuous Collector Current IC: 2 A; (6)Power Dissipation at Tamb =25℃ Ptot: 2 W; (7)Operating and Storage Temperature Range Tj, Tstg: -55 to +150 ℃.

Features

FZT653TA features: Low saturation voltage.

Diagrams

FZT653TA switching speeds

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZT653TA
FZT653TA
Diodes Inc.
Transistors Bipolar (BJT) NPN Medium Power
Data Sheet
0-1: $0.47
1-25: $0.46
25-100: $0.29
100-250: $0.25
