Product Summary
The AD8031ARZ single-supply, voltagefeedback amplifiers feature high speed performance with 80 MHz of small signal bandwidth, 30 V/μs slew rate, and 125 ns settling time. This performance is possible while consuming less than 4.0 mW of power from a single 5 V supply. These features increase the operation time of high speed, battery-powered systems without compromising dynamic performance. The AD8031ARZ also offer excellent signal quality for only 800 μA of supply current per amplifier; THD is -62 dBc with a 2 V p-p, 1 MHz output signal, and –86 dBc for a 100 kHz, 4.6 V p-p signal on +5 V supply.
Parametrics
AD8031ARZ absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Input Voltage (Common Mode): ±VS to ± 0.5 V ; (3)Differential Input Voltage: ±3.4 V; (4)Storage Temperature Range (N, R, RM, RJ): -65°C to +125°C; (5)Lead Temperature (Soldering 10 sec): 300°C.
Features
AD8031ARZ features: (1)Low power supply current 800 μA/amplifier ; (2)High speed and fast settling on 5 V; (3)Rail-to-rail input and output; (4)Low distortion; (5)Output current: 15 mA.

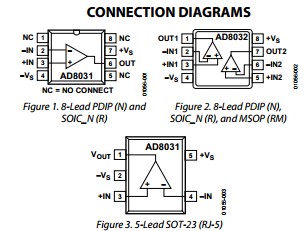

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8031ARZ |
|
IC OPAMP VF R-R LP LDIST 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8031ARZ-REEL |
|
IC OPAMP VF R-R LP LDIST 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8031ARZ-REEL7 |
|
IC OPAMP VF R-R LP LDIST 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
